<zg-editor-row>

Interactive Storybook Playground

The <zg-editor-row> tag is a web component that holds the details of the edit mode for the grid. <zg-editor-row> is created implicitly by the grid and should be placed directly in the user's HTML. The element can inherently be styled through CSS variables or by targeting the tag directly.

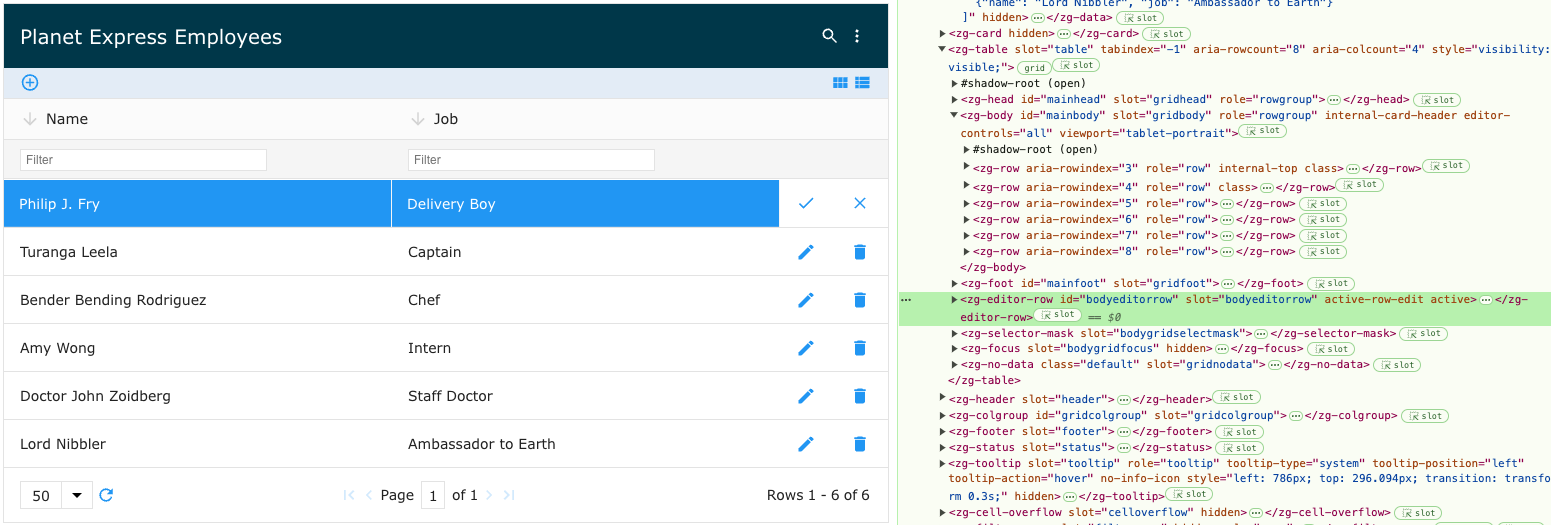

Image of the DOM relationship for the zg-editor web component tag

ZGEditorRow Relationships
Component Relationship Type Ancestor
ZingGrid Parent Generated n/a

Related Web Components

Attributes

There are no attributes available for the <zg-editor-row> web component.

Top

CSS Variables

<zg-editor-row> can be styled with CSS variables, like so:

:root {
--zg-editor-row-input-color: red;
}

Below is a list of all the associated --zg-editor-row CSS variables. Check out the full list of CSS variables or our Styling Basics guide to learn more about styling the grid.

ZGEditorRow CSS Variables and Default Values
Name Default Description Demo CSS Ref
--zg-editor-row-input-background #f5f5f5 Styles the background of editor row
--zg-editor-row-input-background_focus var(--theme-color-lighter) Styles the background of editor row input on focus
--zg-editor-row-input-border 1px solid rgba(82, 168, 236, 0.8) Styles the border of editor row
--zg-editor-row-input-border-bottom var(--zg-editor-row-input-border, 1px solid rgba(82, 168, 236, 0.8)) Styles the bottom border of editor row
--zg-editor-row-input-border-left var(--zg-editor-row-input-border, 0) Styles the left border of editor row
--zg-editor-row-input-border-right var(--zg-editor-row-input-border, 0) Styles the right border of editor row
--zg-editor-row-input-border-top var(--zg-editor-row-input-border, 0) Styles the top border of editor row
--zg-editor-row-input-box-shadow_focus inset 0 0 5px #ccc Applies a box shadow behind editor row input on focus
--zg-editor-row-input-color var(--zg-editor-row-input-color, #fff) Sets the font color of editor row
--zg-editor-row-input-padding 12px 15px Sets the padding of editor row
Top

CSS Selector

<zg-editor-row> can be styled by common CSS selectors, like so:

zg-editor-row {
  border: 1px solid red;
}
Top

CSS Shadow Parts

<zg-editor-row> exposed elements within the shadow can be styled by CSS shadow parts, like so:

zg-editor-row::part(editor-row) {
  background-color: red;
}

Below is a list of all the associated ZGEditorRow shadow parts. Check out the full list of CSS shadow parts or our Styling Basics guide to learn more about styling the grid.

ZGEditorRow CSS Shadow Parts
Name Description
editor-row Editor-row container.
inputs Container for the input fields
Top

Slots

There are no slots available for the <zg-editor-row> web component.
