Docs Version 1

<zg-foot>

Interactive Storybook Playground

The <zg-foot> tag contains the foot cells (<zg-foot-cell>) of the data grid specified via the foot-cell attribute found on <zg-column> tags. The tag roughly corresponds to the idea of the <tfoot> tag used in HTML tables. The <zg-foot> tag is generated by the library and should not be placed in a grid manually by a user. The footer cell is styleable via CSS variables or the zg-foot CSS selector.

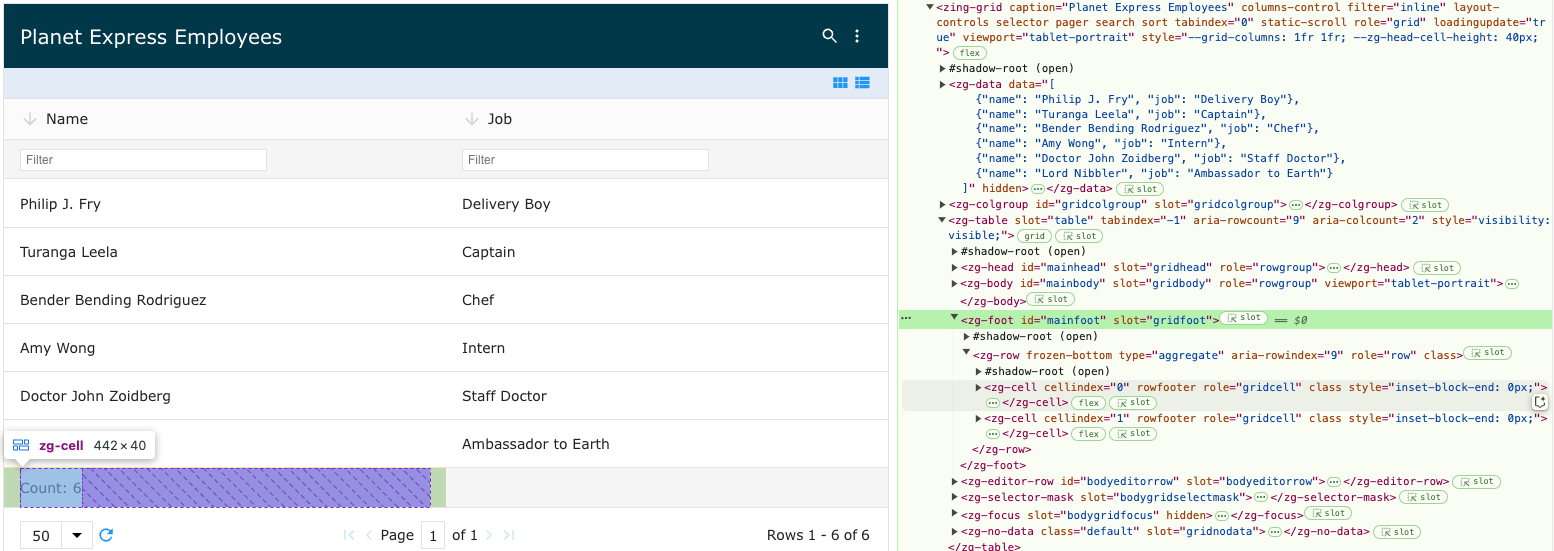

Image of the DOM relationship for the zg-foot web component tag

ZGFoot Relationships
Component Relationship Type Ancestor
ZingGrid Parent Generated n/a
ZGRow Child Generated n/a

Related Web Components

Usage

The <zg-foot> element is a generated element added to <zing-grid> when the selector attribute is defined.

<zing-grid selector
  src="https://cdn.zinggrid.com/datasets/user-roles.json">
</zing-grid>
Top

Attributes

There are no attributes available for the <zg-foot> web component.

Top

CSS Variables

<zg-foot> can be styled with CSS variables, like so:

:root {
--zg-foot-border-top: 1px solid red;
}

Below is a list of all the associated --zg-foot CSS variables. Check out the full list of CSS variables or our Styling Basics guide to learn more about styling the grid.

ZGFoot CSS Variables and Default Values
Name Default Description Demo CSS Ref
--zg-foot-background Browser's default value Styles the background of grid foot
--zg-foot-border 0 Styles the border of grid foot
--zg-foot-border-bottom var(--zg-foot-border, 0) Styles the bottom border of grid foot
--zg-foot-border-left var(--zg-foot-border, 0) Styles the left border of grid foot
--zg-foot-border-right var(--zg-foot-border, 0) Styles the right border of grid foot
--zg-foot-border-top var(--zg-foot-border, 0) Styles the top border of grid foot
--zg-foot-height auto Sets the height of grid foot
--zg-foot-padding 0 Sets the padding of grid foot
Top

CSS Selector

<zg-foot> can be styled by common CSS selectors, like so:

zg-foot {
  border-top: 1px solid red;
}
Top

Slots

There are no slots available for the <zg-foot> web component.

Top

[api: <zg-foot>]
